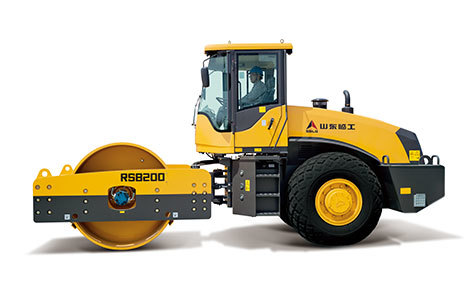

RS8200
Category： Road Roller
1，Nominal Amplitude：2.0/1.0 mm 2，Minimum Outside Steering Radius：6600 mm 3，Vibration Frequency：28/35 Hz 4，Exciting Force：360/280 kN 5，Engine Power：129 kW 6，Maximum Torque：680 N.m @ 2000 r/min 7，Main Drive Reduction Ratio：5.286 8，Wheel Reduction Ratio：4.941 9，Rear Tyre Pressure：0.2 MPa 10，Steering Angle：35°
leave a message now >Specifications
| 1.Parameter | ||||
| Nominal amplitude (mm) | 2.0／1.0 | Minimum outside steering radius (mm) | 6600 | |
| Vibration frequency (Hz) | 28/35 | Maximum gradability | 30％ | |
| Exciting force (kN) | 360／280 | Static line load (N/cm) | 455 | |
| Forward I(km/h) | 0～2.5 | Forward Ⅱ(km/h) | 0～4.9 | |
| Forward Ⅲ(km/h) | 0～11.7 | Forward Ⅳ(km/h) | - | |
| Reverse I (km/h) | 0～2.5 | Reverse II(km/h) | 0～4.9 | |
| Reverse III(km/h) | 0～11.7 | Reverse IV(km/h) | - | |
| Altitude (m) | - | Environmental temperature (℃) | - | |
| Water wading depth (mm) | - | - | - | |
| 2.Dimension | ||||
| Overall length (mm) | 6370 | Vibration pump width (mm) | 2150 | |
| Overall width (mm) | 2320 | Wheel track | - | |
| Overall height (mm) | 3185 | wheelbase（mm） | 3441 | |
| Minimum ground clearance (mm) | 407 | Total mass (kg) | 20000 | |
| Swing angle（°） | - | Work quality (front/back) (kg): | （10000/10000） | |
| 3.Engine | ||||
| Engine model/Drive Motor Model | WP6G175E201 | Number of cylinders | 6 | |
| Engine type | In-line、 water-cooled、 four-stroke、 direct injection | Bore/stroke（mm） | 105/130 | |
| Engine power (KW) | 129 | Minimum fuel consumption(g/kW.h) | ≤215 | |
| Rated engine speed(r/min) | 2000 | Maximum torque (N.m)/rotation speed (r/min) | 680 | |
| Displacement (ml) | 6750 | Emission standard | GB 20891-2007 | |
| 4.Transmission system | ||||
| Clutch type | Single-disc dry clutch | Specification of driven disc | 380 | |
| Separating force (N) | 3630 | Pressing force (N) | 14800～16500 | |
| Separating stroke (mm) | 10 | Transmission type | Counter-shaft power shift | |
| Shifting gears | forward 3 reverse 3 | Gear ratio of transmission forward I | 8.936 | |
| Gear ratio of transmission forward Ⅱ | 4.543 | Gear ratio of transmission forward Ⅲ | 1.900 | |
| Gear ratio of transmission reverse I | 8.936 | Gear ratio of transmission reverse Ⅱ | 4.543 | |
| Gear ratio of transmission reverse Ⅲ | 1.900 | Model of variable-speed pump | PGP511A0160CBbH2ND5D4B1B1 | |
| Working pressure of shifting(MPa) | - | Main drive type | First reduction of spiral bevel gear | |
| Main drive reduction ratio | 5.286 | Wheel reduction type | One-stage planetary reduction | |
| Wheel reduction ratio | 4.941 | Type of drive axle | Rear wheel drive | |
| Tyre size | 23.1－26-12PR | Rear tyre pressure（MPa） | 0.2 | |
| Type of foot brake | Air-over-oil caliper disc brake | Brake pressure (MPa) | 0.6～0.8 | |
| Parking brake type | Manual drum brake | - | - | |
| 5.Steering system | ||||
| Type of steering system | Full hydraulic steering gear | Steering pump model | GBGJ1025, flow rate: 60 L/min | |
| Steering pump displacement | - | Steering cylinder - bore x rod diameter x stroke | 100×45×282 | |
| Steering gear | BZZ6－500A full hydraulic steering gear | Steering gear displacement | - | |
| Steering angle (°) | 35° | Working pressure of steering system（Mpa） | 16MPa | |
| 6.Vibration, walking hydraulic system | ||||
| Vibration mode | Closed-type system | Vibration system manufacturer | SAUER | |
| Vibration pump model | 90R055-DD-1-NN-80-P-4-S1-C-03-GBA-35-35-24 | Vibration pump displacement (mL/r) | 55 ml/r | |
| Vibrating motor model | 90M055-NC0N-8-N0-S1-W-00-NNN-0000-E6 | Vibrating motor displacement (mL/r) | 55 ml/r | |
| Model of walking pump | - | Displacement of walking pump (ml/r) | - | |
| Model of front travel motor | - | Displacement of front travel motor (ml/r) | - | |
| Model of rear travel motor | - | Displacement of rear travel motor (ml/r) | - | |
| Reducer model | - | Reducer gear ratio | - | |
| 7. Oil filling amount | ||||
| Fuel filling capacity（L） | 270 | Oil filling capacity of axles (main drive and wheel reducer)（L） | 16+2×5 | |
| Hydraulic oil filling capacity（L） | 125L | Transmission oil filling capacity（L） | 25 | |
| Engine oil filling capacity（L） | 16 | Oil filling capacity of braking system（L） | 2 | |
| Filling capacity of water radiator antifreeze coolant | - | Gear oil filling capacity of vibrating drum vibration chamber | - | |
Benefits & Features
1，Nominal Amplitude：The machine features a nominal amplitude of 2.0/1.0 mm, indicating its potential for effective compaction.
2，Vibration Frequency：With a vibration frequency of 28/35 Hz, the machine is versatile for different working conditions.
3，Exciting Force：The exciting force of 360/280 kN showcases the machine's ability to deliver substantial impact for compaction tasks.
4，Engine Power：The 129 kW engine power suggests high performance for the machine's operations.
5，Gear Ratios：The counter-shaft power shift transmission with multiple gear ratios allows for varied speed adjustments, enhancing operational flexibility.
6，Main Drive Reduction Ratio：A main drive reduction ratio of 5.286 provides increased torque for heavy-duty applications.
7，Tyre Size：The 23.1-26-12PR tyre size is indicative of the machine's capacity to handle various terrains.
8，Steering System：Full hydraulic steering with a BZZ6-500A gear offers precise control and maneuverability.
9，Vibration System Manufacturer：The integration of a SAUER closed-type vibration system ensures high-quality compaction performance.
10，Oil Filling Amounts：Comprehensive oil filling amounts, including 270L for fuel and 125L for hydraulic oil, highlight the machine's operational capacity and maintenance requirements.
