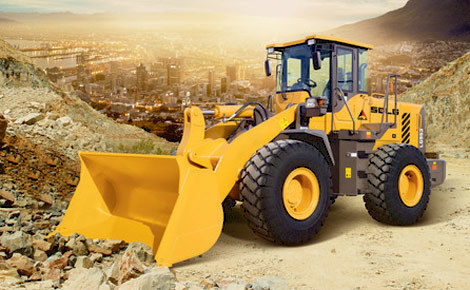

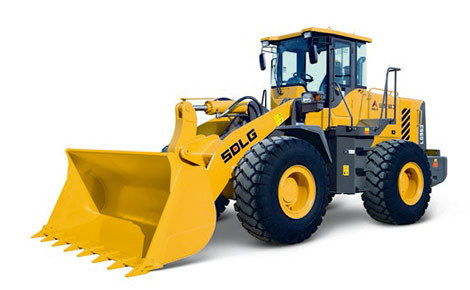

LG953
Category： Wheel loader
1，Rated bucket capacity：2.8 (opt 2.4～4.5) 2，Rated carrying-capacity (kg)：5000 3，Maximum traction force (kN)：152 4，Engine power (KW)：162 5，Engine model/Drive Motor Model：WD10G220E21 6，Torque ratio：4.20 7，Gear ratio of forward I：2.547 8，Gear ratio of reverse I：1.864 9，Steering angle (°)：35° 10，Working pressure of working device hydraulic system：18
leave a message now >Specifications
| 1.Parameter | ||||
| Rated bucket capacity | 2.8(opt 2.4～4.5) | Minimum steering radius (outside of rear wheel) | 6040 | |
| Rated carrying-capacity (kg) | 5000 | Transverse passing radius (outside of bucket) | 7030 | |
| Maximum traction force (kN) | 152 | Altitude (m) | - | |
| Tipping load | 110 | Environmental temperature (℃) | - | |
| Maximum breakout force | 175 | Water wading depth (mm) | - | |
| Forward I | 0～13 | Forward Ⅱ(km/h) | 0～38 | |
| Forward Ⅲ(km/h) | - | Forward Ⅳ(km/h) | - | |
| Reverse I (km/h) | 0～17 | Reverse II | - | |
| Reverse III | - | Reverse IV | - | |
| 2.Dimension | ||||
| Overall length (mm) | 8000 | Overall width (mm) | 3024 | |
| Outside width of wheel | 2845 mm | Wheel track | 2250 | |
| Overall height (mm) | 3423 | wheelbase（mm） | 3000 | |
| Dumping angle | -45 | Maximum dumping height | 3130 mm | |
| Number of axles | 2 | Corresponding dump reach | 1220 | |
| Maximum lifting height of fork horizontal section (mm) | - | Total mass (kg) | 16900 | |
| Minimum ground clearance | 534 | Axis pin at maximum lift height | 4125 mm | |
| Wheelbase (front/rear) (mm) | - | - | - | |
| 3.Engine | ||||
| Engine model/Drive Motor Model | WD10G220E21 | Number of cylinders | 6 | |
| Engine type | In line, water-cooled, four stroke, direct injection | Bore/stroke | 126/130 | |
| Engine power (KW) | 162 | Minimum fuel consumption | 215 | |
| Rated engine speed | 2200 | Maximum torque (N.m)/rotation speed (r/min) | 860/1400～1600 | |
| Displacement (ml) | 9726 | Emission standard | GB 20891-2007 China II emission | |
| 4.Transmission system | ||||
| Type of torque converter | Single-stage four-element twin turbine torque converter | Torque ratio | 4.20 | |
| Oil cooling mode | Circulating water cooling | Oil pressure of torque converter inlet | 0.5～0.6 | |
| Oil pressure of torque converter outlet | 0.21～0.26 | Transmission type | Planetary power shift | |
| Shifting gears | forward 2 reverse 1 | Gear ratio of forward I | 2.547 | |
| Gear ratio of forward Ⅱ | 0.683 | Gear ratio of forward Ⅲ | - | |
| Gear ratio of forward Ⅳ | - | Gear ratio of reverse I | 1.864 | |
| Gear ratio of reverse II | - | Gear ratio of reverse III | - | |
| Gear ratio of reverse IV | - | Model of variable-speed pump | LG03-BSB | |
| Working pressure of shifting | 1.1～1.5 | Main drive type | First reduction of spiral bevel gear | |
| Main drive reduction ratio | 4.625 | Wheel reduction type | One-stage planetary reduction | |
| Wheel reduction ratio | 4.94 | Drive type | CHANGCHAI four-wheel drive | |
| Tyre size | 23.5-25 | Front tyre pressure | 0.39±0.01 | |
| Rear tyre pressure | 0.33±0.01 | Type of foot brake | Air-over-oil caliper disc brake | |
| Brake pressure (MPa) | 0.784 | Parking brake type | Manual internal expansion shoe brake | |
| 5.Steering system | ||||
| Type of steering system | Load-sensing full hydraulic articulated steering | Model of priority valve | VLE-150S | |
| Steering pump model | JHP2A100 | Steering cylinder - bore x rod diameter x stroke | HSGL-90*45*360 | |
| Steering gear model | Xcel80-800 | Steering angle (°) | 35° | |
| Working pressure of steering system | 16 | - | - | |
| 6.Working equipment | ||||
| Type of working device | Mechanical manual control | Boom cylinder - bore × rod diameter × stroke | HSGF-160*90*805 | |
| Turning bucket cylinder - bore x rod diameter x stroke | HSGF-190*90*548 | Model of working pump | JHP3160 | |
| Displacement of working pump (ml/r) | 160 | Model of multi-way valve | DFS-32-18 | |
| Model of pilot valve | - | Working pressure of working device hydraulic system | 18 | |
| Bucket lift time (full load) | ≤5.4 | Bucket fall time (no load) | ≤2.8 | |
| Bucket dumping time (no load) | ≤1.1 | Time sum of three items | ≤9.3 | |
| 7. Oil filling amount | ||||
| Diesel filling capacity of fuel tank | 260 | Oil filling capacity of axles (main drive and wheel reducer) | 26×2 | |
| Oil tank filling capacity | 240 | Engine oil filling capacity | 20 | |
| Transmission oil filling capacity | 44 | Refueling of antifreeze coolant | 55L | |
| Oil filling capacity of braking system | 4 | - | - | |
Benefits & Features
1，Rated bucket capacity：The 2.8 cubic meter bucket capacity is adjustable from 2.4 to 4.5 cubic meters, offering flexibility for different material handling needs.
2，Minimum steering radius：A tight minimum steering radius of 6040 mm allows for excellent maneuverability in confined spaces.
3，Rated carrying-capacity：The rated carrying capacity of 5000 kg ensures the machine can handle significant loads for various operations.
4，Engine power：A powerful engine with 162 kW of power provides ample performance for heavy-duty tasks.
5，Transmission system：The planetary power shift transmission with a single-stage four-element torque converter ensures smooth gear changes and efficient power delivery.
6，Engine type and emission standard：The in-line, water-cooled, four-stroke, direct injection engine complies with the GB 20891-2007 China II emission standard, ensuring both performance and environmental compliance.
7，Steering system：The load-sensing full hydraulic articulated steering system with a VLE-150S priority valve provides precise control for complex maneuvers.
8，Working equipment：The mechanical manual control for the working device allows for direct and responsive operation, crucial for productivity in heavy-duty applications.
9，Bucket lift and dump times：The bucket lift time of ≤5.4 seconds and the dump time of ≤1.1 seconds for a full load indicate high efficiency in material handling.
10，Oil filling amounts：The comprehensive oil filling capacities, including the diesel, engine oil, transmission oil, and hydraulic system fluids, ensure the equipment is well-maintained for optimal performance.
