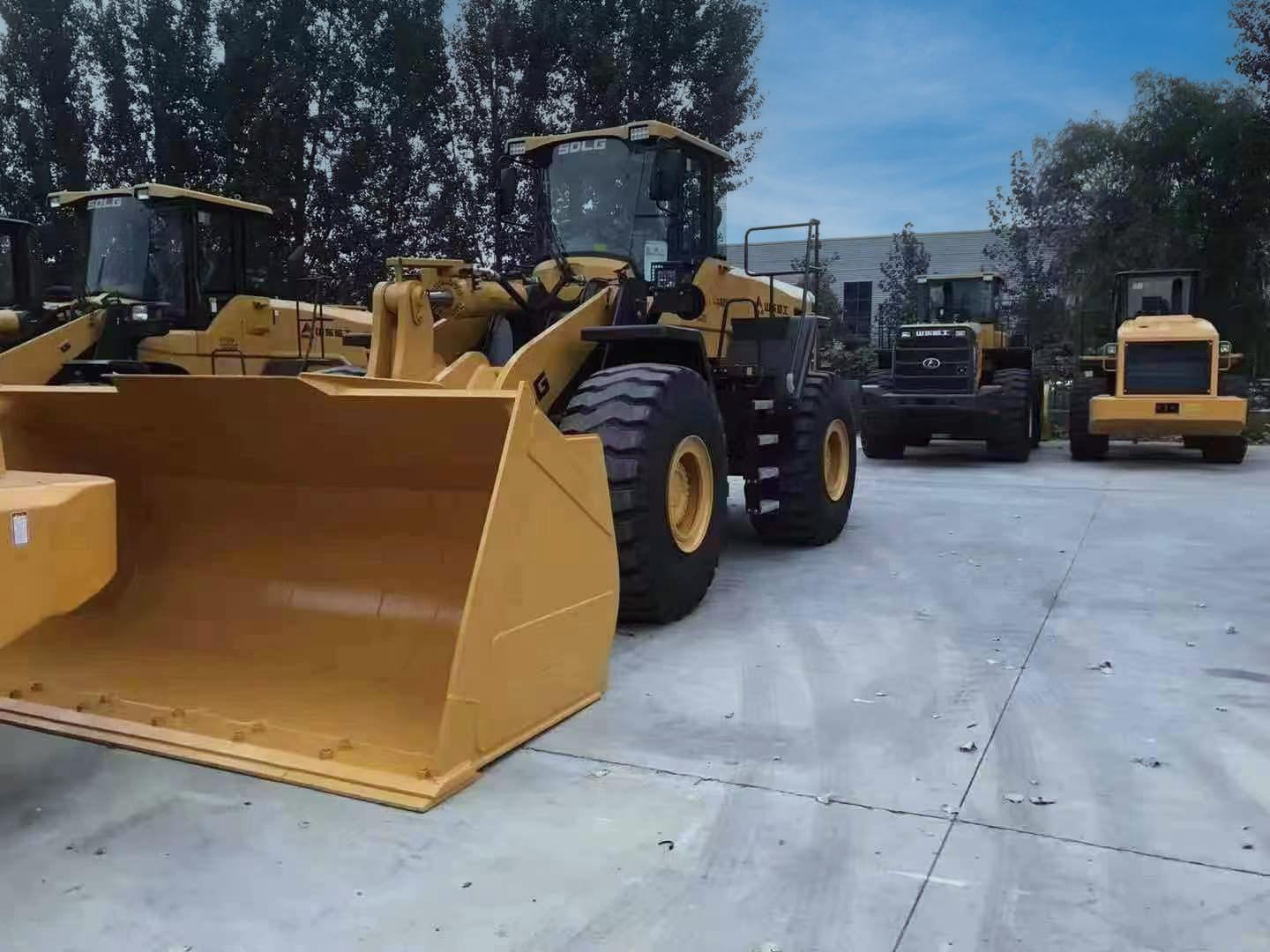

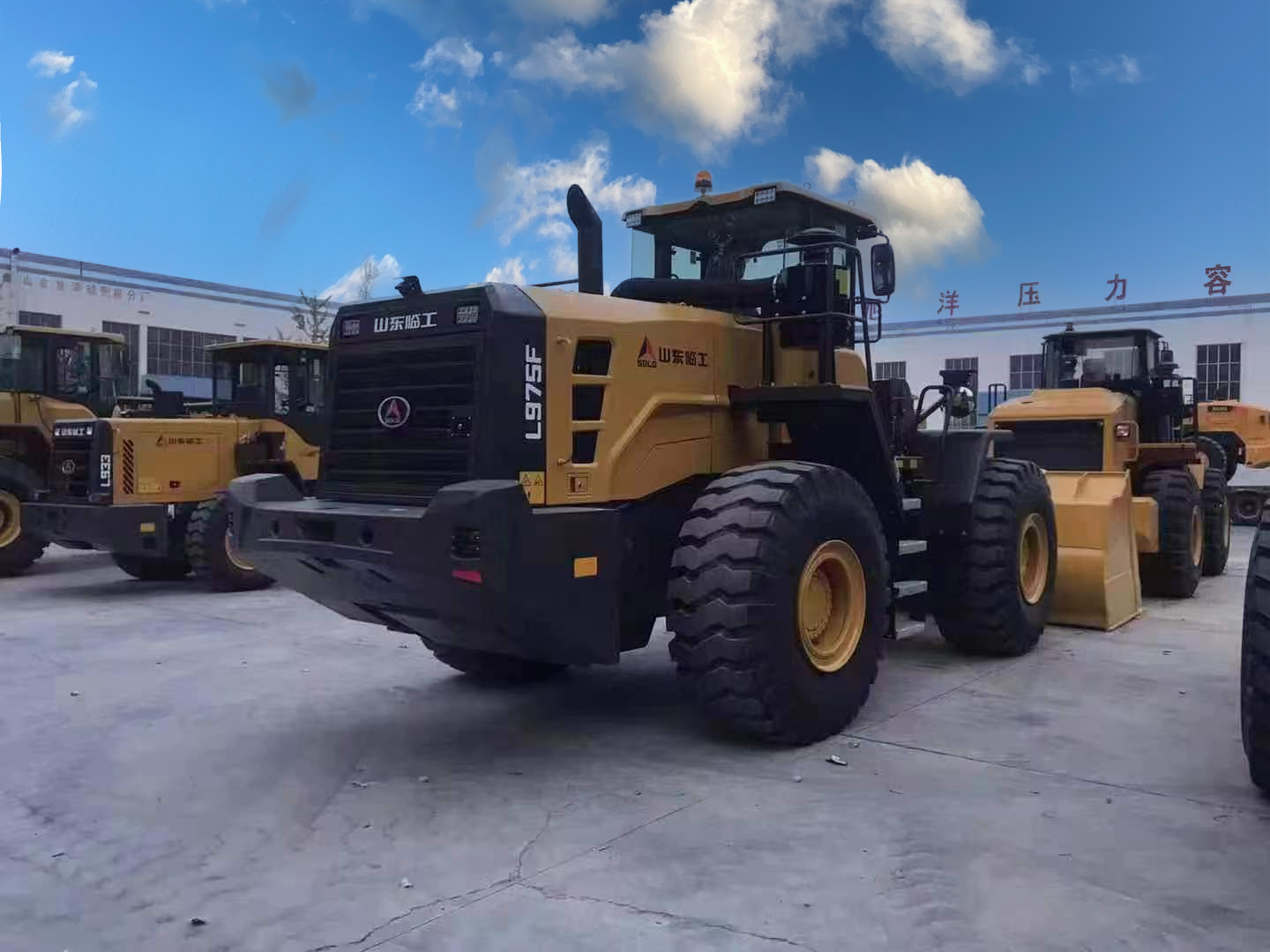

L975F
Category： Wheel loader
Rated bucket capacity: 4.2 (opt 3.5～7.0) Rated carrying-capacity (kg): 7000 Maximum traction force (kN): 226 kN Maximum breakout force: 216 kN Forward I (km/h): 0～7.4 km/h Forward IV (km/h): 0～40 km/h Reverse IV (km/h): 0～40 km/h Overall length (mm): 9250 Engine model/Drive Motor Model: WP10G270E341 Engine power (KW): 199
leave a message now >Specifications
| 1.Parameter | ||||
| Rated bucket capacity | 4.2（opt 3.5～7.0） | Minimum steering radius (outside of rear wheel) | 6375 mm | |
| Rated carrying-capacity (kg) | 7000 | Transverse passing radius (outside of bucket) | 7450 mm | |
| Maximum traction force (kN) | 226 kN | Altitude (m) | - | |
| Tipping load | 145 kN | Environmental temperature (℃) | - | |
| Maximum breakout force | 216 kN | Water wading depth (mm) | - | |
| Forward I | 0～7.4 km/h | Forward Ⅱ(km/h) | 0～13.7 km/h | |
| Forward Ⅲ(km/h) | 0～27.3 km/h | Forward Ⅳ(km/h) | 0～40 km/h | |
| Reverse I (km/h) | 0～7.4 km/h | Reverse II | 0～13.7 km/h | |
| Reverse III | 0～27.3 km/h | Reverse IV | 0～40 km/h | |
| 2.Dimension | ||||
| Overall length (mm) | 9250 | Overall width (mm) | 3320 | |
| Outside width of wheel | 3115 mm | Wheel track | - | |
| Overall height (mm) | 3620 | wheelbase（mm） | 3550 | |
| Dumping angle | -45° | Maximum dumping height | 3200 mm | |
| Number of axles | 2 | Corresponding dump reach | 1315 mm | |
| Maximum lifting height of fork horizontal section (mm) | - | Total mass (kg) | 25060 | |
| Minimum ground clearance | 506 mm | Axis pin at maximum lift height | 4335 mm | |
| Wheelbase (front/rear) (mm) | - | - | - | |
| 3.Engine | ||||
| Engine model/Drive Motor Model | WP10G270E341 | Number of cylinders | 6 | |
| Engine type | In-line、 water-cooled、 dry sleeve、 direct injection | Bore/stroke | 126/130 mm | |
| Engine power (KW) | 199 | Minimum fuel consumption | ≤215 g/(kW.h) | |
| Rated engine speed | 2200 r/min | Maximum torque (N.m)/rotation speed (r/min) | 1300/1400 | |
| Displacement (ml) | 9726 | Emission standard | GB 20891-2014（China Ⅲ emission） | |
| 4.Transmission system | ||||
| Type of torque converter | Single-stage three-element single turbine torque converter | Torque ratio | 2.47 | |
| Oil cooling mode | Air cooling | Oil pressure of torque converter inlet | 0.6 MPa | |
| Oil pressure of torque converter outlet | 0.3 MPa | Transmission type | Counter-shaft electric liquid shift | |
| Shifting gears | forward 4 reverse 4 | Gear ratio of forward I | 4.77 | |
| Gear ratio of forward Ⅱ | 2.51 | Gear ratio of forward Ⅲ | 1.19 | |
| Gear ratio of forward Ⅳ | 0.74 | Gear ratio of reverse I | 4.77 | |
| Gear ratio of reverse II | 2.51 | Gear ratio of reverse III | 1.19 | |
| Gear ratio of reverse IV | 0.74 | Model of variable-speed pump | Built-in transmission | |
| Working pressure of shifting | 1.5～1.8 MPa | Main drive type | First reduction of spiral bevel gear | |
| Main drive reduction ratio | 3.7 | Wheel reduction type | One-stage planetary reduction | |
| Wheel reduction ratio | 5.6 | Drive type | Tubed tyre | |
| Tyre size | 26.5-25 | Front tyre pressure | 0.475±0.01 MPa | |
| Rear tyre pressure | 0.40±0.01 MPa | Type of foot brake | Full hydraulic dry brake | |
| Brake pressure (MPa) | 13.8 | Parking brake type | Pressure-releasing caliper disc brake | |
| 5.Steering system | ||||
| Type of steering system | Load sensing | Model of priority valve | VLH-240 | |
| Steering pump model | Plunger pump ER-L-100B-LS | Steering cylinder - bore x rod diameter x stroke | HSGL-100×60×432-918 | |
| Steering gear model | BZZ8-1182 | Steering angle (°) | 38° | |
| Working pressure of steering system | 21 MPa | - | - | |
| 6.Working equipment | ||||
| Type of working device | Double ball handle hydraulic pilot control | Boom cylinder - bore × rod diameter × stroke | HSGF-170×110×861-1460 | |
| Turning bucket cylinder - bore x rod diameter x stroke | HSGF-200×110×564-1138 | Model of working pump | Double pump 119/10 | |
| Displacement of working pump (ml/r) | 119 | Model of multi-way valve | M1-32-02 | |
| Model of pilot valve | PCL402 | Working pressure of working device hydraulic system | 25.5 MPa | |
| Bucket lift time (full load) | 5.5 s | Bucket fall time (no load) | 4.3 s | |
| Bucket dumping time (no load) | 1.1 s | Time sum of three items | 10.9 s | |
| 7、 Oil filling amount | ||||
| Diesel filling capacity of fuel tank | 380 L | Oil filling capacity of axles (main drive and wheel reducer) | Front axle 44L；rear axle 37L | |
| Oil tank filling capacity | 230 L | Engine oil filling capacity | 20L | |
| Transmission oil filling capacity | 55L | Refueling of antifreeze coolant | 55L | |
| Oil filling capacity of braking system | - | - | - | |
Benefits & Features
-
Versatile Bucket Capacity: The product offers an adjustable rated bucket capacity from 3.5 to 7.0 cubic meters, with a standard capacity of 4.2 cubic meters, providing flexibility for various loading tasks.
-
Enhanced Load Capacity: With a rated carrying capacity of 7000 kilograms, the product is well-suited for heavy-duty applications requiring substantial load handling.
-
Exceptional Traction and Breakout Forces: The product boasts a maximum traction force of 226 kN and a maximum breakout force of 216 kN, ensuring superior performance in tough working conditions.
-
Broad Speed Range: It features a comprehensive speed range, including Forward IV at 0 to 40 km/h and Reverse IV at 0 to 40 km/h, allowing for efficient operation across different terrains and tasks.
-
Robust Engine Performance: Powered by a WP10G270E341 engine, the product delivers 199 kW of power with a displacement of 9726 milliliters, meeting China III emission standards for environmental compliance.
-
Advanced Transmission System: Equipped with a counter-shaft electric liquid shift transmission and a single-stage three-element single turbine torque converter, the product ensures smooth gear shifting and high torque transfer.
-
Optimized Dimensions: The product's overall length of 9250 millimeters and overall width of 3320 millimeters, along with a wheelbase of 3550 millimeters, contribute to its stability and maneuverability.
-
Efficient Hydraulic System: The load sensing steering system and double ball handle hydraulic pilot control for the working device ensure precise and responsive operation.
-
Ample Fuel and Fluid Storage: A large fuel tank capacity of 380 liters and an oil tank capacity of 230 liters, along with other essential fluid capacities, support extended operation without frequent refueling.
-
Safety and Braking System: The product is equipped with a full hydraulic dry brake and a pressure-releasing caliper disc brake for parking, providing reliable safety measures during operation.
