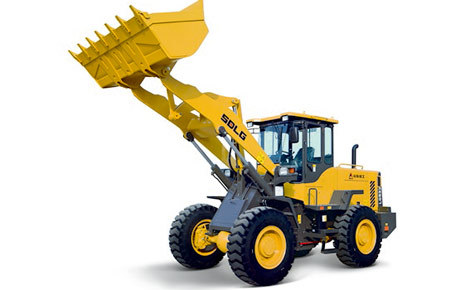

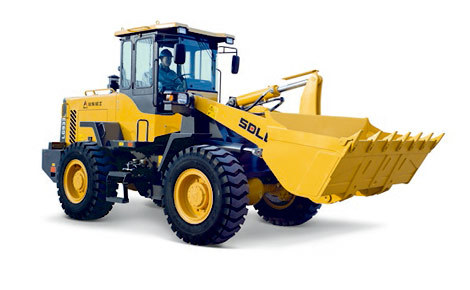

LG933L
Category： Wheel loader
1，Rated bucket capacity：1.8 (opt 1.5～3.0) 2，Rated carrying-capacity (kg)：3000 3，Maximum traction force (kN)：≥96 kN 4，Engine power (KW)：92 5，Engine model/Drive Motor Model：WP6G125E23 6，Gear ratio of forward I：3.82 7，Gear ratio of forward Ⅳ：0.59 8，Steering angle (°)：36° 9，Working pressure of working device hydraulic system：16 MPa 10，Diesel filling capacity of fuel tank：140 L
leave a message now >Specifications
| 1.Parameter | ||||
| Rated bucket capacity | 1.8（opt 1.5～3.0） | Minimum steering radius (outside of rear wheel) | 5120mm | |
| Rated carrying-capacity (kg) | 3000 | Transverse passing radius (outside of bucket) | 5945 mm | |
| Maximum traction force (kN) | ≥96 kN | altitude | - | |
| Tipping load | ≥60 kN | ambient temperature | - | |
| Maximum breakout force | ≥96 kN | wading depth | - | |
| Forward I | 0～8 km/h | Forward Ⅱ(km/h) | 0～14 km/h | |
| Forward Ⅲ(km/h) | 0～27 km/h | Forward Ⅳ(km/h) | 0～40 km/h | |
| Reverse I (km/h) | 0～9 km/h | Reverse II | 0～27 km/h | |
| Reverse III | - | Reverse IV | - | |
| 2.Dimension | ||||
| Overall length (mm) | 6970 | Overall width (mm) | 2520 | |
| Outside width of wheel | 2310 mm | Wheel track | - | |
| Overall height (mm) | 3240 | wheelbase（mm） | 2700 | |
| Dumping angle | -45° | Maximum dumping height | 2950 mm | |
| Number of axles | 2 | Corresponding dump reach | 1050 mm | |
| Maximum lifting height of fork horizontal section (mm) | - | Total mass (kg) | 10110 | |
| Minimum ground clearance | 375 mm | Axis pin at maximum lift height | - | |
| Wheelbase (front/rear) (mm) | - | - | - | |
| 3.Engine | ||||
| Engine model/Drive Motor Model | WP6G125E23 | Number of cylinders | 6 | |
| Engine type | In-line、 water-cooled、 four-stroke | Bore/stroke | 105/130 mm | |
| Engine power (KW) | 92 | Minimum fuel consumption | 215 g/kw.h | |
| Rated engine speed | 2300 r/min | Maximum torque (N.m)/rotation speed (r/min) | 500 N.m | |
| Displacement (ml) | 6750 | Emission standard | GB 20891-2007 China II emission | |
| 4.Transmission system | ||||
| Type of torque converter | Single-stage three-element torque converter | Torque ratio | 3.27 | |
| Oil cooling mode | Air cooling | Oil pressure of torque converter inlet | 0.5～0.6 MPa | |
| Oil pressure of torque converter outlet | 0.2～0.3 MPa | Transmission type | Counter-shaft power shift | |
| Shifting gears | forward 4 reverse 2 | Gear ratio of forward I | 3.82 | |
| Gear ratio of forward Ⅱ | 2.08 | Gear ratio of forward Ⅲ | 1.09 | |
| Gear ratio of forward Ⅳ | 0.59 | Gear ratio of reverse I | 3.05 | |
| Gear ratio of reverse II | 0.87 | Gear ratio of reverse III | - | |
| Gear ratio of reverse IV | - | Model of variable-speed pump | CBGjA2032 | |
| Working pressure of shifting | 1.1～1.5 MPa | Main drive type | First reduction of spiral bevel gear | |
| Main drive reduction ratio | 6.167 | Wheel reduction type | One-stage planetary reduction | |
| Wheel reduction ratio | 3.12 | Drive type | CHANGCHAI four-wheel drive | |
| Tyre size | 17.5-25 | Front tyre pressure | 0.31～0.33 MPa | |
| Rear tyre pressure | 0.27～0.29 MPa | Type of foot brake | Air-over-oil caliper disc brake | |
| Brake pressure (MPa) | 0.784 MPa | Parking brake type | Manual caliper disc brake | |
| 5.Steering system | ||||
| Type of steering system | Load-sensing full hydraulic articulated steering | Model of priority valve | VLH-240S-14 | |
| Steering pump model | CBGj3100/1010-XF | Steering cylinder - bore x rod diameter x stroke | HSGF-80×45×327 mm | |
| Steering gear model | BZZ6—630A | Steering angle (°) | 36° | |
| Working pressure of steering system | 14 MPa | - | - | |
| 6.Working equipment | ||||
| Type of working device | Hydraulic pilot control | Boom cylinder - bore × rod diameter × stroke | HSGF-125×70×771 mm | |
| Turning bucket cylinder - bore x rod diameter x stroke | HSGF-140×80×502 mm | Model of working pump | CBGj3100/1010-XF | |
| Displacement of working pump (ml/r) | - | Model of multi-way valve | DFSY-25-16 | |
| Model of pilot valve | - | Working pressure of working device hydraulic system | 16 MPa | |
| Bucket lift time (full load) | ≤5.2 s | Bucket fall time (no load) | ≤3.0 s | |
| Bucket dumping time (no load) | ≤0.8 s | Time sum of three items | ≤9.0 s | |
| 7. Oil filling amount | ||||
| Diesel filling capacity of fuel tank | 140 L | Oil filling capacity of axles (main drive and wheel reducer) | 2×18 L | |
| Oil tank filling capacity | 130 L | Engine oil filling capacity | 14 L | |
| Transmission oil filling capacity | 45 L | Refueling of antifreeze coolant | - | |
| Oil filling capacity of braking system | 4 L | - | - | |
Benefits & Features
1，Rated bucket capacity：The rated bucket capacity ranges from 1.5 to 3.0 cubic meters, allowing for versatile operations in different environments.
2，Maximum traction force：With a maximum traction force of ≥96 kN, the machine is capable of handling heavy loads and steep gradients.
3，Engine power：Equipped with a WP6G125E23 engine delivering 92 kW, this ensures powerful performance and efficiency.
4，Gear ratios：The transmission system features a range of gear ratios for different speeds, from 3.82 for forward I to 0.59 for forward IV, providing flexibility in various working conditions.
5，Steering system：A load-sensing full hydraulic articulated steering system with a steering angle of 36° ensures precise maneuverability.
6，Working pressure of shifting：The shifting system operates at a pressure of 1.1～1.5 MPa, contributing to a smooth and reliable gear change.
7，Tyre size：17.5-25 tyres are used, which are suitable for heavy-duty applications and provide good traction.
8，Brake pressure：An air-over-oil caliper disc brake with a brake pressure of 0.784 MPa ensures effective stopping power.
9，Bucket lift time：The full-load bucket lift time is ≤5.2 seconds, indicating quick operational efficiency.
10，Oil filling amount：Abundant oil filling capacities for the fuel tank, axle, and transmission ensure long operation times before refueling or maintenance is required.
